os_flag.c 文件参考
#include <ucos_ii.h>
os_flag.c 的引用(Include)关系图:

浏览源代码.

函数

static void OS_FlagBlock (OS_FLAG_GRP *pgrp, OS_FLAG_NODE *pnode, OS_FLAGS flags, INT8U wait_type, INT32U timeout)

static BOOLEAN OS_FlagTaskRdy (OS_FLAG_NODE *pnode, OS_FLAGS flags_rdy)

OS_FLAGS OSFlagAccept (OS_FLAG_GRP *pgrp, OS_FLAGS flags, INT8U wait_type, INT8U *perr)

OS_FLAG_GRP * OSFlagCreate (OS_FLAGS flags, INT8U *perr)

OS_FLAG_GRP * OSFlagDel (OS_FLAG_GRP *pgrp, INT8U opt, INT8U *perr)

INT8U OSFlagNameGet (OS_FLAG_GRP *pgrp, INT8U **pname, INT8U *perr)

void OSFlagNameSet (OS_FLAG_GRP *pgrp, INT8U *pname, INT8U *perr)

OS_FLAGS OSFlagPend (OS_FLAG_GRP *pgrp, OS_FLAGS flags, INT8U wait_type, INT32U timeout, INT8U *perr)

OS_FLAGS OSFlagPendGetFlagsRdy (void)

OS_FLAGS OSFlagPost (OS_FLAG_GRP *pgrp, OS_FLAGS flags, INT8U opt, INT8U *perr)

OS_FLAGS OSFlagQuery (OS_FLAG_GRP *pgrp, INT8U *perr)

void OS_FlagInit (void)

void OS_FlagUnlink (OS_FLAG_NODE *pnode)


函数说明

static void OS_FlagBlock ( OS_FLAG_GRP *  pgrp,
OS_FLAG_NODE *  pnode,
OS_FLAGS  flags,
INT8U  wait_type,
INT32U  timeout
)
static

在文件 os_flag.c 第 997 行定义.

参考 OS_STAT_FLAG, OS_STAT_PEND_OK, OS_FLAG_NODE::OSFlagNodeFlagGrp, OS_FLAG_NODE::OSFlagNodeFlags, OS_FLAG_NODE::OSFlagNodeNext, OS_FLAG_NODE::OSFlagNodePrev, OS_FLAG_NODE::OSFlagNodeTCB, OS_FLAG_NODE::OSFlagNodeWaitType, OS_FLAG_GRP::OSFlagWaitList, OSRdyGrp, OSRdyTbl, OS_TCB::OSTCBBitX, OS_TCB::OSTCBBitY, OSTCBCur, OS_TCB::OSTCBDly, OS_TCB::OSTCBFlagNode, OS_TCB::OSTCBStat, OS_TCB::OSTCBStatPend , 以及 OS_TCB::OSTCBY.

参考自 OSFlagPend().

1002 {
1003  OS_FLAG_NODE *pnode_next;
1004  INT8U y;
1005
1006
1007  OSTCBCur->OSTCBStat |= OS_STAT_FLAG;
1008  OSTCBCur->OSTCBStatPend = OS_STAT_PEND_OK;
1009  OSTCBCur->OSTCBDly = timeout; /* Store timeout in task's TCB */
1010 #if OS_TASK_DEL_EN > 0u
1011  OSTCBCur->OSTCBFlagNode = pnode; /* TCB to link to node */
1012 #endif
1013  pnode->OSFlagNodeFlags = flags; /* Save the flags that we need to wait for */
1014  pnode->OSFlagNodeWaitType = wait_type; /* Save the type of wait we are doing */
1015  pnode->OSFlagNodeTCB = (void *)OSTCBCur; /* Link to task's TCB */
1016  pnode->OSFlagNodeNext = pgrp->OSFlagWaitList; /* Add node at beginning of event flag wait list */
1017  pnode->OSFlagNodePrev = (void *)0;
1018  pnode->OSFlagNodeFlagGrp = (void *)pgrp; /* Link to Event Flag Group */
1019  pnode_next = (OS_FLAG_NODE *)pgrp->OSFlagWaitList;
1020  if (pnode_next != (void *)0) { /* Is this the first NODE to insert? */
1021  pnode_next->OSFlagNodePrev = pnode; /* No, link in doubly linked list */
1022  }
1023  pgrp->OSFlagWaitList = (void *)pnode;
1024
1025  y = OSTCBCur->OSTCBY; /* Suspend current task until flag(s) received */
1026  OSRdyTbl[y] &= ~OSTCBCur->OSTCBBitX;
1027  if (OSRdyTbl[y] == 0x00) {
1028  OSRdyGrp &= ~OSTCBCur->OSTCBBitY;
1029  }
1030 }

这是这个函数的调用关系图:

static BOOLEAN OS_FlagTaskRdy ( OS_FLAG_NODE *  pnode,
OS_FLAGS  flags_rdy
)
static

在文件 os_flag.c 第 1111 行定义.

参考 OS_FALSE, OS_FlagUnlink(), OS_STAT_FLAG, OS_STAT_PEND_OK, OS_STAT_RDY, OS_TRUE, OS_FLAG_NODE::OSFlagNodeTCB, OSRdyGrp, OSRdyTbl, OS_TCB::OSTCBBitX, OS_TCB::OSTCBBitY, OS_TCB::OSTCBDly, OS_TCB::OSTCBFlagsRdy, OS_TCB::OSTCBStat, OS_TCB::OSTCBStatPend , 以及 OS_TCB::OSTCBY.

参考自 OSFlagDel() , 以及 OSFlagPost().

1113 {
1114  OS_TCB *ptcb;
1115  BOOLEAN sched;
1116
1117
1118  ptcb = (OS_TCB *)pnode->OSFlagNodeTCB; /* Point to TCB of waiting task */
1119  ptcb->OSTCBDly = 0;
1120  ptcb->OSTCBFlagsRdy = flags_rdy;
1121  ptcb->OSTCBStat &= ~(INT8U)OS_STAT_FLAG;
1122  ptcb->OSTCBStatPend = OS_STAT_PEND_OK;
1123  if (ptcb->OSTCBStat == OS_STAT_RDY) { /* Task now ready? */
1124  OSRdyGrp |= ptcb->OSTCBBitY; /* Put task into ready list */
1125  OSRdyTbl[ptcb->OSTCBY] |= ptcb->OSTCBBitX;
1126  sched = OS_TRUE;
1127  } else {
1128  sched = OS_FALSE;
1129  }
1130  OS_FlagUnlink(pnode);
1131  return (sched);
1132 }

函数调用图:

这是这个函数的调用关系图:

OS_FLAGS OSFlagAccept ( OS_FLAG_GRP *  pgrp,
OS_FLAGS  flags,
INT8U  wait_type,
INT8U *  perr
)

在文件 os_flag.c 第 92 行定义.

参考 OS_ENTER_CRITICAL, OS_ERR_EVENT_TYPE, OS_ERR_FLAG_INVALID_PGRP, OS_ERR_FLAG_NOT_RDY, OS_ERR_FLAG_WAIT_TYPE, OS_ERR_NONE, OS_EVENT_TYPE_FLAG, OS_EXIT_CRITICAL, OS_FALSE, OS_FLAG_CONSUME, OS_FLAG_WAIT_CLR_ALL, OS_FLAG_WAIT_CLR_ANY, OS_FLAG_WAIT_SET_ALL, OS_FLAG_WAIT_SET_ANY, OS_TRUE, OS_FLAG_GRP::OSFlagFlags , 以及 OS_FLAG_GRP::OSFlagType.

96 {
97  OS_FLAGS flags_rdy;
98  INT8U result;
99  BOOLEAN consume;
100 #if OS_CRITICAL_METHOD == 3u /* Allocate storage for CPU status register */
101  OS_CPU_SR cpu_sr = 0u;
102 #endif
103
104
105
106 #if OS_ARG_CHK_EN > 0u
107  if (perr == (INT8U *)0) { /* Validate 'perr' */
108  return ((OS_FLAGS)0);
109  }
110  if (pgrp == (OS_FLAG_GRP *)0) { /* Validate 'pgrp' */
111  *perr = OS_ERR_FLAG_INVALID_PGRP;
112  return ((OS_FLAGS)0);
113  }
114 #endif
115  if (pgrp->OSFlagType != OS_EVENT_TYPE_FLAG) { /* Validate event block type */
116  *perr = OS_ERR_EVENT_TYPE;
117  return ((OS_FLAGS)0);
118  }
119  result = (INT8U)(wait_type & OS_FLAG_CONSUME);
120  if (result != (INT8U)0) { /* See if we need to consume the flags */
121  wait_type &= ~OS_FLAG_CONSUME;
122  consume = OS_TRUE;
123  } else {
124  consume = OS_FALSE;
125  }
126 /*$PAGE*/
127  *perr = OS_ERR_NONE; /* Assume NO error until proven otherwise. */
128  OS_ENTER_CRITICAL();
129  switch (wait_type) {
130  case OS_FLAG_WAIT_SET_ALL: /* See if all required flags are set */
131  flags_rdy = (OS_FLAGS)(pgrp->OSFlagFlags & flags); /* Extract only the bits we want */
132  if (flags_rdy == flags) { /* Must match ALL the bits that we want */
133  if (consume == OS_TRUE) { /* See if we need to consume the flags */
134  pgrp->OSFlagFlags &= ~flags_rdy; /* Clear ONLY the flags that we wanted */
135  }
136  } else {
137  *perr = OS_ERR_FLAG_NOT_RDY;
138  }
139  OS_EXIT_CRITICAL();
140  break;
141
142  case OS_FLAG_WAIT_SET_ANY:
143  flags_rdy = (OS_FLAGS)(pgrp->OSFlagFlags & flags); /* Extract only the bits we want */
144  if (flags_rdy != (OS_FLAGS)0) { /* See if any flag set */
145  if (consume == OS_TRUE) { /* See if we need to consume the flags */
146  pgrp->OSFlagFlags &= ~flags_rdy; /* Clear ONLY the flags that we got */
147  }
148  } else {
149  *perr = OS_ERR_FLAG_NOT_RDY;
150  }
151  OS_EXIT_CRITICAL();
152  break;
153
154 #if OS_FLAG_WAIT_CLR_EN > 0u
155  case OS_FLAG_WAIT_CLR_ALL: /* See if all required flags are cleared */
156  flags_rdy = (OS_FLAGS)(~pgrp->OSFlagFlags & flags); /* Extract only the bits we want */
157  if (flags_rdy == flags) { /* Must match ALL the bits that we want */
158  if (consume == OS_TRUE) { /* See if we need to consume the flags */
159  pgrp->OSFlagFlags |= flags_rdy; /* Set ONLY the flags that we wanted */
160  }
161  } else {
162  *perr = OS_ERR_FLAG_NOT_RDY;
163  }
164  OS_EXIT_CRITICAL();
165  break;
166
167  case OS_FLAG_WAIT_CLR_ANY:
168  flags_rdy = (OS_FLAGS)(~pgrp->OSFlagFlags & flags); /* Extract only the bits we want */
169  if (flags_rdy != (OS_FLAGS)0) { /* See if any flag cleared */
170  if (consume == OS_TRUE) { /* See if we need to consume the flags */
171  pgrp->OSFlagFlags |= flags_rdy; /* Set ONLY the flags that we got */
172  }
173  } else {
174  *perr = OS_ERR_FLAG_NOT_RDY;
175  }
176  OS_EXIT_CRITICAL();
177  break;
178 #endif
179
180  default:
181  OS_EXIT_CRITICAL();
182  flags_rdy = (OS_FLAGS)0;
183  *perr = OS_ERR_FLAG_WAIT_TYPE;
184  break;
185  }
186  return (flags_rdy);
187 }
OS_FLAG_GRP* OSFlagCreate ( OS_FLAGS  flags,
INT8U *  perr
)

在文件 os_flag.c 第 211 行定义.

参考 OS_ENTER_CRITICAL, OS_ERR_CREATE_ISR, OS_ERR_FLAG_GRP_DEPLETED, OS_ERR_NONE, OS_EVENT_TYPE_FLAG, OS_EXIT_CRITICAL, OS_FLAG_GRP::OSFlagFlags, OSFlagFreeList, OS_FLAG_GRP::OSFlagName, OS_FLAG_GRP::OSFlagType, OS_FLAG_GRP::OSFlagWaitList , 以及 OSIntNesting.

213 {
214  OS_FLAG_GRP *pgrp;
215 #if OS_CRITICAL_METHOD == 3u /* Allocate storage for CPU status register */
216  OS_CPU_SR cpu_sr = 0u;
217 #endif
218
219
220
221 #if OS_ARG_CHK_EN > 0u
222  if (perr == (INT8U *)0) { /* Validate 'perr' */
223  return ((OS_FLAG_GRP *)0);
224  }
225 #endif
226  if (OSIntNesting > 0u) { /* See if called from ISR ... */
227  *perr = OS_ERR_CREATE_ISR; /* ... can't CREATE from an ISR */
228  return ((OS_FLAG_GRP *)0);
229  }
230  OS_ENTER_CRITICAL();
231  pgrp = OSFlagFreeList; /* Get next free event flag */
232  if (pgrp != (OS_FLAG_GRP *)0) { /* See if we have event flag groups available */
233  /* Adjust free list */
234  OSFlagFreeList = (OS_FLAG_GRP *)OSFlagFreeList->OSFlagWaitList;
235  pgrp->OSFlagType = OS_EVENT_TYPE_FLAG; /* Set to event flag group type */
236  pgrp->OSFlagFlags = flags; /* Set to desired initial value */
237  pgrp->OSFlagWaitList = (void *)0; /* Clear list of tasks waiting on flags */
238 #if OS_FLAG_NAME_EN > 0u
239  pgrp->OSFlagName = (INT8U *)"?";
240 #endif
241  OS_EXIT_CRITICAL();
242  *perr = OS_ERR_NONE;
243  } else {
244  OS_EXIT_CRITICAL();
245  *perr = OS_ERR_FLAG_GRP_DEPLETED;
246  }
247  return (pgrp); /* Return pointer to event flag group */
248 }
OS_FLAG_GRP* OSFlagDel ( OS_FLAG_GRP *  pgrp,
INT8U  opt,
INT8U *  perr
)

在文件 os_flag.c 第 288 行定义.

参考 OS_DEL_ALWAYS, OS_DEL_NO_PEND, OS_ENTER_CRITICAL, OS_ERR_DEL_ISR, OS_ERR_EVENT_TYPE, OS_ERR_FLAG_INVALID_PGRP, OS_ERR_INVALID_OPT, OS_ERR_NONE, OS_ERR_TASK_WAITING, OS_EVENT_TYPE_FLAG, OS_EVENT_TYPE_UNUSED, OS_EXIT_CRITICAL, OS_FALSE, OS_FlagTaskRdy(), OS_Sched(), OS_TRUE, OS_FLAG_GRP::OSFlagFlags, OSFlagFreeList, OS_FLAG_GRP::OSFlagName, OS_FLAG_NODE::OSFlagNodeNext, OS_FLAG_GRP::OSFlagType, OS_FLAG_GRP::OSFlagWaitList , 以及 OSIntNesting.

291 {
292  BOOLEAN tasks_waiting;
293  OS_FLAG_NODE *pnode;
294  OS_FLAG_GRP *pgrp_return;
295 #if OS_CRITICAL_METHOD == 3u /* Allocate storage for CPU status register */
296  OS_CPU_SR cpu_sr = 0u;
297 #endif
298
299
300
301 #if OS_ARG_CHK_EN > 0u
302  if (perr == (INT8U *)0) { /* Validate 'perr' */
303  return (pgrp);
304  }
305  if (pgrp == (OS_FLAG_GRP *)0) { /* Validate 'pgrp' */
306  *perr = OS_ERR_FLAG_INVALID_PGRP;
307  return (pgrp);
308  }
309 #endif
310  if (OSIntNesting > 0u) { /* See if called from ISR ... */
311  *perr = OS_ERR_DEL_ISR; /* ... can't DELETE from an ISR */
312  return (pgrp);
313  }
314  if (pgrp->OSFlagType != OS_EVENT_TYPE_FLAG) { /* Validate event group type */
315  *perr = OS_ERR_EVENT_TYPE;
316  return (pgrp);
317  }
318  OS_ENTER_CRITICAL();
319  if (pgrp->OSFlagWaitList != (void *)0) { /* See if any tasks waiting on event flags */
320  tasks_waiting = OS_TRUE; /* Yes */
321  } else {
322  tasks_waiting = OS_FALSE; /* No */
323  }
324  switch (opt) {
325  case OS_DEL_NO_PEND: /* Delete group if no task waiting */
326  if (tasks_waiting == OS_FALSE) {
327 #if OS_FLAG_NAME_EN > 0u
328  pgrp->OSFlagName = (INT8U *)"?";
329 #endif
330  pgrp->OSFlagType = OS_EVENT_TYPE_UNUSED;
331  pgrp->OSFlagWaitList = (void *)OSFlagFreeList; /* Return group to free list */
332  pgrp->OSFlagFlags = (OS_FLAGS)0;
333  OSFlagFreeList = pgrp;
334  OS_EXIT_CRITICAL();
335  *perr = OS_ERR_NONE;
336  pgrp_return = (OS_FLAG_GRP *)0; /* Event Flag Group has been deleted */
337  } else {
338  OS_EXIT_CRITICAL();
339  *perr = OS_ERR_TASK_WAITING;
340  pgrp_return = pgrp;
341  }
342  break;
343
344  case OS_DEL_ALWAYS: /* Always delete the event flag group */
345  pnode = (OS_FLAG_NODE *)pgrp->OSFlagWaitList;
346  while (pnode != (OS_FLAG_NODE *)0) { /* Ready ALL tasks waiting for flags */
347  (void)OS_FlagTaskRdy(pnode, (OS_FLAGS)0);
348  pnode = (OS_FLAG_NODE *)pnode->OSFlagNodeNext;
349  }
350 #if OS_FLAG_NAME_EN > 0u
351  pgrp->OSFlagName = (INT8U *)"?";
352 #endif
353  pgrp->OSFlagType = OS_EVENT_TYPE_UNUSED;
354  pgrp->OSFlagWaitList = (void *)OSFlagFreeList;/* Return group to free list */
355  pgrp->OSFlagFlags = (OS_FLAGS)0;
356  OSFlagFreeList = pgrp;
357  OS_EXIT_CRITICAL();
358  if (tasks_waiting == OS_TRUE) { /* Reschedule only if task(s) were waiting */
359  OS_Sched(); /* Find highest priority task ready to run */
360  }
361  *perr = OS_ERR_NONE;
362  pgrp_return = (OS_FLAG_GRP *)0; /* Event Flag Group has been deleted */
363  break;
364
365  default:
366  OS_EXIT_CRITICAL();
367  *perr = OS_ERR_INVALID_OPT;
368  pgrp_return = pgrp;
369  break;
370  }
371  return (pgrp_return);
372 }

函数调用图:

INT8U OSFlagNameGet ( OS_FLAG_GRP *  pgrp,
INT8U **  pname,
INT8U *  perr
)

在文件 os_flag.c 第 399 行定义.

参考 OS_ENTER_CRITICAL, OS_ERR_EVENT_TYPE, OS_ERR_FLAG_INVALID_PGRP, OS_ERR_NAME_GET_ISR, OS_ERR_NONE, OS_ERR_PNAME_NULL, OS_EVENT_TYPE_FLAG, OS_EXIT_CRITICAL, OS_StrLen(), OS_FLAG_GRP::OSFlagName, OS_FLAG_GRP::OSFlagType , 以及 OSIntNesting.

402 {
403  INT8U len;
404 #if OS_CRITICAL_METHOD == 3u /* Allocate storage for CPU status register */
405  OS_CPU_SR cpu_sr = 0u;
406 #endif
407
408
409
410 #if OS_ARG_CHK_EN > 0u
411  if (perr == (INT8U *)0) { /* Validate 'perr' */
412  return (0u);
413  }
414  if (pgrp == (OS_FLAG_GRP *)0) { /* Is 'pgrp' a NULL pointer? */
415  *perr = OS_ERR_FLAG_INVALID_PGRP;
416  return (0u);
417  }
418  if (pname == (INT8U **)0) { /* Is 'pname' a NULL pointer? */
419  *perr = OS_ERR_PNAME_NULL;
420  return (0u);
421  }
422 #endif
423  if (OSIntNesting > 0u) { /* See if trying to call from an ISR */
424  *perr = OS_ERR_NAME_GET_ISR;
425  return (0u);
426  }
427  OS_ENTER_CRITICAL();
428  if (pgrp->OSFlagType != OS_EVENT_TYPE_FLAG) {
429  OS_EXIT_CRITICAL();
430  *perr = OS_ERR_EVENT_TYPE;
431  return (0u);
432  }
433  *pname = pgrp->OSFlagName;
434  len = OS_StrLen(*pname);
435  OS_EXIT_CRITICAL();
436  *perr = OS_ERR_NONE;
437  return (len);
438 }

函数调用图:

void OSFlagNameSet ( OS_FLAG_GRP *  pgrp,
INT8U *  pname,
INT8U *  perr
)

在文件 os_flag.c 第 466 行定义.

参考 OS_ENTER_CRITICAL, OS_ERR_EVENT_TYPE, OS_ERR_FLAG_INVALID_PGRP, OS_ERR_NAME_SET_ISR, OS_ERR_NONE, OS_ERR_PNAME_NULL, OS_EVENT_TYPE_FLAG, OS_EXIT_CRITICAL, OS_FLAG_GRP::OSFlagName, OS_FLAG_GRP::OSFlagType , 以及 OSIntNesting.

469 {
470 #if OS_CRITICAL_METHOD == 3u /* Allocate storage for CPU status register */
471  OS_CPU_SR cpu_sr = 0u;
472 #endif
473
474
475
476 #if OS_ARG_CHK_EN > 0u
477  if (perr == (INT8U *)0) { /* Validate 'perr' */
478  return;
479  }
480  if (pgrp == (OS_FLAG_GRP *)0) { /* Is 'pgrp' a NULL pointer? */
481  *perr = OS_ERR_FLAG_INVALID_PGRP;
482  return;
483  }
484  if (pname == (INT8U *)0) { /* Is 'pname' a NULL pointer? */
485  *perr = OS_ERR_PNAME_NULL;
486  return;
487  }
488 #endif
489  if (OSIntNesting > 0u) { /* See if trying to call from an ISR */
490  *perr = OS_ERR_NAME_SET_ISR;
491  return;
492  }
493  OS_ENTER_CRITICAL();
494  if (pgrp->OSFlagType != OS_EVENT_TYPE_FLAG) {
495  OS_EXIT_CRITICAL();
496  *perr = OS_ERR_EVENT_TYPE;
497  return;
498  }
499  pgrp->OSFlagName = pname;
500  OS_EXIT_CRITICAL();
501  *perr = OS_ERR_NONE;
502  return;
503 }
OS_FLAGS OSFlagPend ( OS_FLAG_GRP *  pgrp,
OS_FLAGS  flags,
INT8U  wait_type,
INT32U  timeout,
INT8U *  perr
)

在文件 os_flag.c 第 561 行定义.

参考 OS_ENTER_CRITICAL, OS_ERR_EVENT_TYPE, OS_ERR_FLAG_INVALID_PGRP, OS_ERR_FLAG_WAIT_TYPE, OS_ERR_NONE, OS_ERR_PEND_ABORT, OS_ERR_PEND_ISR, OS_ERR_PEND_LOCKED, OS_ERR_TIMEOUT, OS_EVENT_TYPE_FLAG, OS_EXIT_CRITICAL, OS_FALSE, OS_FLAG_CONSUME, OS_FLAG_WAIT_CLR_ALL, OS_FLAG_WAIT_CLR_ANY, OS_FLAG_WAIT_SET_ALL, OS_FLAG_WAIT_SET_ANY, OS_FlagBlock(), OS_FlagUnlink(), OS_Sched(), OS_STAT_PEND_ABORT, OS_STAT_PEND_OK, OS_STAT_PEND_TO, OS_STAT_RDY, OS_TRUE, OS_FLAG_GRP::OSFlagFlags, OS_FLAG_GRP::OSFlagType, OSIntNesting, OSLockNesting, OSTCBCur, OS_TCB::OSTCBFlagsRdy, OS_TCB::OSTCBStat , 以及 OS_TCB::OSTCBStatPend.

566 {
567  OS_FLAG_NODE node;
568  OS_FLAGS flags_rdy;
569  INT8U result;
570  INT8U pend_stat;
571  BOOLEAN consume;
572 #if OS_CRITICAL_METHOD == 3u /* Allocate storage for CPU status register */
573  OS_CPU_SR cpu_sr = 0u;
574 #endif
575
576
577
578 #if OS_ARG_CHK_EN > 0u
579  if (perr == (INT8U *)0) { /* Validate 'perr' */
580  return ((OS_FLAGS)0);
581  }
582  if (pgrp == (OS_FLAG_GRP *)0) { /* Validate 'pgrp' */
583  *perr = OS_ERR_FLAG_INVALID_PGRP;
584  return ((OS_FLAGS)0);
585  }
586 #endif
587  if (OSIntNesting > 0u) { /* See if called from ISR ... */
588  *perr = OS_ERR_PEND_ISR; /* ... can't PEND from an ISR */
589  return ((OS_FLAGS)0);
590  }
591  if (OSLockNesting > 0u) { /* See if called with scheduler locked ... */
592  *perr = OS_ERR_PEND_LOCKED; /* ... can't PEND when locked */
593  return ((OS_FLAGS)0);
594  }
595  if (pgrp->OSFlagType != OS_EVENT_TYPE_FLAG) { /* Validate event block type */
596  *perr = OS_ERR_EVENT_TYPE;
597  return ((OS_FLAGS)0);
598  }
599  result = (INT8U)(wait_type & OS_FLAG_CONSUME);
600  if (result != (INT8U)0) { /* See if we need to consume the flags */
601  wait_type &= ~(INT8U)OS_FLAG_CONSUME;
602  consume = OS_TRUE;
603  } else {
604  consume = OS_FALSE;
605  }
606 /*$PAGE*/
607  OS_ENTER_CRITICAL();
608  switch (wait_type) {
609  case OS_FLAG_WAIT_SET_ALL: /* See if all required flags are set */
610  flags_rdy = (OS_FLAGS)(pgrp->OSFlagFlags & flags); /* Extract only the bits we want */
611  if (flags_rdy == flags) { /* Must match ALL the bits that we want */
612  if (consume == OS_TRUE) { /* See if we need to consume the flags */
613  pgrp->OSFlagFlags &= ~flags_rdy; /* Clear ONLY the flags that we wanted */
614  }
615  OSTCBCur->OSTCBFlagsRdy = flags_rdy; /* Save flags that were ready */
616  OS_EXIT_CRITICAL(); /* Yes, condition met, return to caller */
617  *perr = OS_ERR_NONE;
618  return (flags_rdy);
619  } else { /* Block task until events occur or timeout */
620  OS_FlagBlock(pgrp, &node, flags, wait_type, timeout);
621  OS_EXIT_CRITICAL();
622  }
623  break;
624
625  case OS_FLAG_WAIT_SET_ANY:
626  flags_rdy = (OS_FLAGS)(pgrp->OSFlagFlags & flags); /* Extract only the bits we want */
627  if (flags_rdy != (OS_FLAGS)0) { /* See if any flag set */
628  if (consume == OS_TRUE) { /* See if we need to consume the flags */
629  pgrp->OSFlagFlags &= ~flags_rdy; /* Clear ONLY the flags that we got */
630  }
631  OSTCBCur->OSTCBFlagsRdy = flags_rdy; /* Save flags that were ready */
632  OS_EXIT_CRITICAL(); /* Yes, condition met, return to caller */
633  *perr = OS_ERR_NONE;
634  return (flags_rdy);
635  } else { /* Block task until events occur or timeout */
636  OS_FlagBlock(pgrp, &node, flags, wait_type, timeout);
637  OS_EXIT_CRITICAL();
638  }
639  break;
640
641 #if OS_FLAG_WAIT_CLR_EN > 0u
642  case OS_FLAG_WAIT_CLR_ALL: /* See if all required flags are cleared */
643  flags_rdy = (OS_FLAGS)(~pgrp->OSFlagFlags & flags); /* Extract only the bits we want */
644  if (flags_rdy == flags) { /* Must match ALL the bits that we want */
645  if (consume == OS_TRUE) { /* See if we need to consume the flags */
646  pgrp->OSFlagFlags |= flags_rdy; /* Set ONLY the flags that we wanted */
647  }
648  OSTCBCur->OSTCBFlagsRdy = flags_rdy; /* Save flags that were ready */
649  OS_EXIT_CRITICAL(); /* Yes, condition met, return to caller */
650  *perr = OS_ERR_NONE;
651  return (flags_rdy);
652  } else { /* Block task until events occur or timeout */
653  OS_FlagBlock(pgrp, &node, flags, wait_type, timeout);
654  OS_EXIT_CRITICAL();
655  }
656  break;
657
658  case OS_FLAG_WAIT_CLR_ANY:
659  flags_rdy = (OS_FLAGS)(~pgrp->OSFlagFlags & flags); /* Extract only the bits we want */
660  if (flags_rdy != (OS_FLAGS)0) { /* See if any flag cleared */
661  if (consume == OS_TRUE) { /* See if we need to consume the flags */
662  pgrp->OSFlagFlags |= flags_rdy; /* Set ONLY the flags that we got */
663  }
664  OSTCBCur->OSTCBFlagsRdy = flags_rdy; /* Save flags that were ready */
665  OS_EXIT_CRITICAL(); /* Yes, condition met, return to caller */
666  *perr = OS_ERR_NONE;
667  return (flags_rdy);
668  } else { /* Block task until events occur or timeout */
669  OS_FlagBlock(pgrp, &node, flags, wait_type, timeout);
670  OS_EXIT_CRITICAL();
671  }
672  break;
673 #endif
674
675  default:
676  OS_EXIT_CRITICAL();
677  flags_rdy = (OS_FLAGS)0;
678  *perr = OS_ERR_FLAG_WAIT_TYPE;
679  return (flags_rdy);
680  }
681 /*$PAGE*/
682  OS_Sched(); /* Find next HPT ready to run */
683  OS_ENTER_CRITICAL();
684  if (OSTCBCur->OSTCBStatPend != OS_STAT_PEND_OK) { /* Have we timed-out or aborted? */
685  pend_stat = OSTCBCur->OSTCBStatPend;
686  OSTCBCur->OSTCBStatPend = OS_STAT_PEND_OK;
687  OS_FlagUnlink(&node);
688  OSTCBCur->OSTCBStat = OS_STAT_RDY; /* Yes, make task ready-to-run */
689  OS_EXIT_CRITICAL();
690  flags_rdy = (OS_FLAGS)0;
691  switch (pend_stat) {
692  case OS_STAT_PEND_ABORT:
693  *perr = OS_ERR_PEND_ABORT; /* Indicate that we aborted waiting */
694  break;
695
696  case OS_STAT_PEND_TO:
697  default:
698  *perr = OS_ERR_TIMEOUT; /* Indicate that we timed-out waiting */
699  break;
700  }
701  return (flags_rdy);
702  }
703  flags_rdy = OSTCBCur->OSTCBFlagsRdy;
704  if (consume == OS_TRUE) { /* See if we need to consume the flags */
705  switch (wait_type) {
706  case OS_FLAG_WAIT_SET_ALL:
707  case OS_FLAG_WAIT_SET_ANY: /* Clear ONLY the flags we got */
708  pgrp->OSFlagFlags &= ~flags_rdy;
709  break;
710
711 #if OS_FLAG_WAIT_CLR_EN > 0u
712  case OS_FLAG_WAIT_CLR_ALL:
713  case OS_FLAG_WAIT_CLR_ANY: /* Set ONLY the flags we got */
714  pgrp->OSFlagFlags |= flags_rdy;
715  break;
716 #endif
717  default:
718  OS_EXIT_CRITICAL();
719  *perr = OS_ERR_FLAG_WAIT_TYPE;
720  return ((OS_FLAGS)0);
721  }
722  }
723  OS_EXIT_CRITICAL();
724  *perr = OS_ERR_NONE; /* Event(s) must have occurred */
725  return (flags_rdy);
726 }

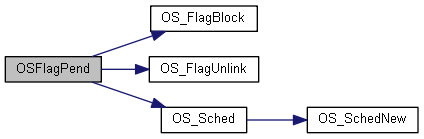

函数调用图:

OS_FLAGS OSFlagPendGetFlagsRdy ( void  )

在文件 os_flag.c 第 743 行定义.

参考 OS_ENTER_CRITICAL, OS_EXIT_CRITICAL, OSTCBCur , 以及 OS_TCB::OSTCBFlagsRdy.

744 {
745  OS_FLAGS flags;
746 #if OS_CRITICAL_METHOD == 3u /* Allocate storage for CPU status register */
747  OS_CPU_SR cpu_sr = 0u;
748 #endif
749
750
751
752  OS_ENTER_CRITICAL();
753  flags = OSTCBCur->OSTCBFlagsRdy;
754  OS_EXIT_CRITICAL();
755  return (flags);
756 }
OS_FLAGS OSFlagPost ( OS_FLAG_GRP *  pgrp,
OS_FLAGS  flags,
INT8U  opt,
INT8U *  perr
)

在文件 os_flag.c 第 800 行定义.

参考 OS_ENTER_CRITICAL, OS_ERR_EVENT_TYPE, OS_ERR_FLAG_INVALID_OPT, OS_ERR_FLAG_INVALID_PGRP, OS_ERR_FLAG_WAIT_TYPE, OS_ERR_NONE, OS_EVENT_TYPE_FLAG, OS_EXIT_CRITICAL, OS_FALSE, OS_FLAG_CLR, OS_FLAG_SET, OS_FLAG_WAIT_CLR_ALL, OS_FLAG_WAIT_CLR_ANY, OS_FLAG_WAIT_SET_ALL, OS_FLAG_WAIT_SET_ANY, OS_FlagTaskRdy(), OS_Sched(), OS_TRUE, OS_FLAG_GRP::OSFlagFlags, OS_FLAG_NODE::OSFlagNodeFlags, OS_FLAG_NODE::OSFlagNodeNext, OS_FLAG_NODE::OSFlagNodeWaitType, OS_FLAG_GRP::OSFlagType , 以及 OS_FLAG_GRP::OSFlagWaitList.

804 {
805  OS_FLAG_NODE *pnode;
806  BOOLEAN sched;
807  OS_FLAGS flags_cur;
808  OS_FLAGS flags_rdy;
809  BOOLEAN rdy;
810 #if OS_CRITICAL_METHOD == 3u /* Allocate storage for CPU status register */
811  OS_CPU_SR cpu_sr = 0u;
812 #endif
813
814
815
816 #if OS_ARG_CHK_EN > 0u
817  if (perr == (INT8U *)0) { /* Validate 'perr' */
818  return ((OS_FLAGS)0);
819  }
820  if (pgrp == (OS_FLAG_GRP *)0) { /* Validate 'pgrp' */
821  *perr = OS_ERR_FLAG_INVALID_PGRP;
822  return ((OS_FLAGS)0);
823  }
824 #endif
825  if (pgrp->OSFlagType != OS_EVENT_TYPE_FLAG) { /* Make sure we are pointing to an event flag grp */
826  *perr = OS_ERR_EVENT_TYPE;
827  return ((OS_FLAGS)0);
828  }
829 /*$PAGE*/
830  OS_ENTER_CRITICAL();
831  switch (opt) {
832  case OS_FLAG_CLR:
833  pgrp->OSFlagFlags &= ~flags; /* Clear the flags specified in the group */
834  break;
835
836  case OS_FLAG_SET:
837  pgrp->OSFlagFlags |= flags; /* Set the flags specified in the group */
838  break;
839
840  default:
841  OS_EXIT_CRITICAL(); /* INVALID option */
842  *perr = OS_ERR_FLAG_INVALID_OPT;
843  return ((OS_FLAGS)0);
844  }
845  sched = OS_FALSE; /* Indicate that we don't need rescheduling */
846  pnode = (OS_FLAG_NODE *)pgrp->OSFlagWaitList;
847  while (pnode != (OS_FLAG_NODE *)0) { /* Go through all tasks waiting on event flag(s) */
848  switch (pnode->OSFlagNodeWaitType) {
849  case OS_FLAG_WAIT_SET_ALL: /* See if all req. flags are set for current node */
850  flags_rdy = (OS_FLAGS)(pgrp->OSFlagFlags & pnode->OSFlagNodeFlags);
851  if (flags_rdy == pnode->OSFlagNodeFlags) {
852  rdy = OS_FlagTaskRdy(pnode, flags_rdy); /* Make task RTR, event(s) Rx'd */
853  if (rdy == OS_TRUE) {
854  sched = OS_TRUE; /* When done we will reschedule */
855  }
856  }
857  break;
858
859  case OS_FLAG_WAIT_SET_ANY: /* See if any flag set */
860  flags_rdy = (OS_FLAGS)(pgrp->OSFlagFlags & pnode->OSFlagNodeFlags);
861  if (flags_rdy != (OS_FLAGS)0) {
862  rdy = OS_FlagTaskRdy(pnode, flags_rdy); /* Make task RTR, event(s) Rx'd */
863  if (rdy == OS_TRUE) {
864  sched = OS_TRUE; /* When done we will reschedule */
865  }
866  }
867  break;
868
869 #if OS_FLAG_WAIT_CLR_EN > 0u
870  case OS_FLAG_WAIT_CLR_ALL: /* See if all req. flags are set for current node */
871  flags_rdy = (OS_FLAGS)(~pgrp->OSFlagFlags & pnode->OSFlagNodeFlags);
872  if (flags_rdy == pnode->OSFlagNodeFlags) {
873  rdy = OS_FlagTaskRdy(pnode, flags_rdy); /* Make task RTR, event(s) Rx'd */
874  if (rdy == OS_TRUE) {
875  sched = OS_TRUE; /* When done we will reschedule */
876  }
877  }
878  break;
879
880  case OS_FLAG_WAIT_CLR_ANY: /* See if any flag set */
881  flags_rdy = (OS_FLAGS)(~pgrp->OSFlagFlags & pnode->OSFlagNodeFlags);
882  if (flags_rdy != (OS_FLAGS)0) {
883  rdy = OS_FlagTaskRdy(pnode, flags_rdy); /* Make task RTR, event(s) Rx'd */
884  if (rdy == OS_TRUE) {
885  sched = OS_TRUE; /* When done we will reschedule */
886  }
887  }
888  break;
889 #endif
890  default:
891  OS_EXIT_CRITICAL();
892  *perr = OS_ERR_FLAG_WAIT_TYPE;
893  return ((OS_FLAGS)0);
894  }
895  pnode = (OS_FLAG_NODE *)pnode->OSFlagNodeNext; /* Point to next task waiting for event flag(s) */
896  }
897  OS_EXIT_CRITICAL();
898  if (sched == OS_TRUE) {
899  OS_Sched();
900  }
901  OS_ENTER_CRITICAL();
902  flags_cur = pgrp->OSFlagFlags;
903  OS_EXIT_CRITICAL();
904  *perr = OS_ERR_NONE;
905  return (flags_cur);
906 }

函数调用图:

OS_FLAGS OSFlagQuery ( OS_FLAG_GRP *  pgrp,
INT8U *  perr
)

在文件 os_flag.c 第 928 行定义.

参考 OS_ENTER_CRITICAL, OS_ERR_EVENT_TYPE, OS_ERR_FLAG_INVALID_PGRP, OS_ERR_NONE, OS_EVENT_TYPE_FLAG, OS_EXIT_CRITICAL, OS_FLAG_GRP::OSFlagFlags , 以及 OS_FLAG_GRP::OSFlagType.

930 {
931  OS_FLAGS flags;
932 #if OS_CRITICAL_METHOD == 3u /* Allocate storage for CPU status register */
933  OS_CPU_SR cpu_sr = 0u;
934 #endif
935
936
937
938 #if OS_ARG_CHK_EN > 0u
939  if (perr == (INT8U *)0) { /* Validate 'perr' */
940  return ((OS_FLAGS)0);
941  }
942  if (pgrp == (OS_FLAG_GRP *)0) { /* Validate 'pgrp' */
943  *perr = OS_ERR_FLAG_INVALID_PGRP;
944  return ((OS_FLAGS)0);
945  }
946 #endif
947  if (pgrp->OSFlagType != OS_EVENT_TYPE_FLAG) { /* Validate event block type */
948  *perr = OS_ERR_EVENT_TYPE;
949  return ((OS_FLAGS)0);
950  }
951  OS_ENTER_CRITICAL();
952  flags = pgrp->OSFlagFlags;
953  OS_EXIT_CRITICAL();
954  *perr = OS_ERR_NONE;
955  return (flags); /* Return the current value of the event flags */
956 }
void OS_FlagInit ( void  )

在文件 os_flag.c 第 1048 行定义.

参考 OS_EVENT_TYPE_UNUSED, OS_MAX_FLAGS, OS_MemClr(), OS_FLAG_GRP::OSFlagFlags, OSFlagFreeList, OS_FLAG_GRP::OSFlagName, OSFlagTbl, OS_FLAG_GRP::OSFlagType , 以及 OS_FLAG_GRP::OSFlagWaitList.

参考自 OSInit().

1049 {
1050 #if OS_MAX_FLAGS == 1u
1051  OSFlagFreeList = (OS_FLAG_GRP *)&OSFlagTbl[0]; /* Only ONE event flag group! */
1052  OSFlagFreeList->OSFlagType = OS_EVENT_TYPE_UNUSED;
1053  OSFlagFreeList->OSFlagWaitList = (void *)0;
1054  OSFlagFreeList->OSFlagFlags = (OS_FLAGS)0;
1055 #if OS_FLAG_NAME_EN > 0u
1056  OSFlagFreeList->OSFlagName = (INT8U *)"?";
1057 #endif
1058 #endif
1059
1060 #if OS_MAX_FLAGS >= 2u
1061  INT16U i;
1062  OS_FLAG_GRP *pgrp1;
1063  OS_FLAG_GRP *pgrp2;
1064
1065
1066  OS_MemClr((INT8U *)&OSFlagTbl[0], sizeof(OSFlagTbl)); /* Clear the flag group table */
1067  pgrp1 = &OSFlagTbl[0];
1068  pgrp2 = &OSFlagTbl[1];
1069  for (i = 0u; i < (OS_MAX_FLAGS - 1u); i++) { /* Init. list of free EVENT FLAGS */
1070  pgrp1->OSFlagType = OS_EVENT_TYPE_UNUSED;
1071  pgrp1->OSFlagWaitList = (void *)pgrp2;
1072 #if OS_FLAG_NAME_EN > 0u
1073  pgrp1->OSFlagName = (INT8U *)"?"; /* Unknown name */
1074 #endif
1075  pgrp1++;
1076  pgrp2++;
1077  }
1078  pgrp1->OSFlagType = OS_EVENT_TYPE_UNUSED;
1079  pgrp1->OSFlagWaitList = (void *)0;
1080 #if OS_FLAG_NAME_EN > 0u
1081  pgrp1->OSFlagName = (INT8U *)"?"; /* Unknown name */
1082 #endif
1083  OSFlagFreeList = &OSFlagTbl[0];
1084 #endif
1085 }

函数调用图:

这是这个函数的调用关系图:

void OS_FlagUnlink ( OS_FLAG_NODE *  pnode)

在文件 os_flag.c 第 1156 行定义.

参考 OS_FLAG_NODE::OSFlagNodeFlagGrp, OS_FLAG_NODE::OSFlagNodeNext, OS_FLAG_NODE::OSFlagNodePrev, OS_FLAG_NODE::OSFlagNodeTCB, OS_FLAG_GRP::OSFlagWaitList , 以及 OS_TCB::OSTCBFlagNode.

参考自 OS_FlagTaskRdy(), OSFlagPend() , 以及 OSTaskDel().

1157 {
1158 #if OS_TASK_DEL_EN > 0u
1159  OS_TCB *ptcb;
1160 #endif
1161  OS_FLAG_GRP *pgrp;
1162  OS_FLAG_NODE *pnode_prev;
1163  OS_FLAG_NODE *pnode_next;
1164
1165
1166  pnode_prev = (OS_FLAG_NODE *)pnode->OSFlagNodePrev;
1167  pnode_next = (OS_FLAG_NODE *)pnode->OSFlagNodeNext;
1168  if (pnode_prev == (OS_FLAG_NODE *)0) { /* Is it first node in wait list? */
1169  pgrp = (OS_FLAG_GRP *)pnode->OSFlagNodeFlagGrp;
1170  pgrp->OSFlagWaitList = (void *)pnode_next; /* Update list for new 1st node */
1171  if (pnode_next != (OS_FLAG_NODE *)0) {
1172  pnode_next->OSFlagNodePrev = (OS_FLAG_NODE *)0; /* Link new 1st node PREV to NULL */
1173  }
1174  } else { /* No, A node somewhere in the list */
1175  pnode_prev->OSFlagNodeNext = pnode_next; /* Link around the node to unlink */
1176  if (pnode_next != (OS_FLAG_NODE *)0) { /* Was this the LAST node? */
1177  pnode_next->OSFlagNodePrev = pnode_prev; /* No, Link around current node */
1178  }
1179  }
1180 #if OS_TASK_DEL_EN > 0u
1181  ptcb = (OS_TCB *)pnode->OSFlagNodeTCB;
1182  ptcb->OSTCBFlagNode = (OS_FLAG_NODE *)0;
1183 #endif
1184 }

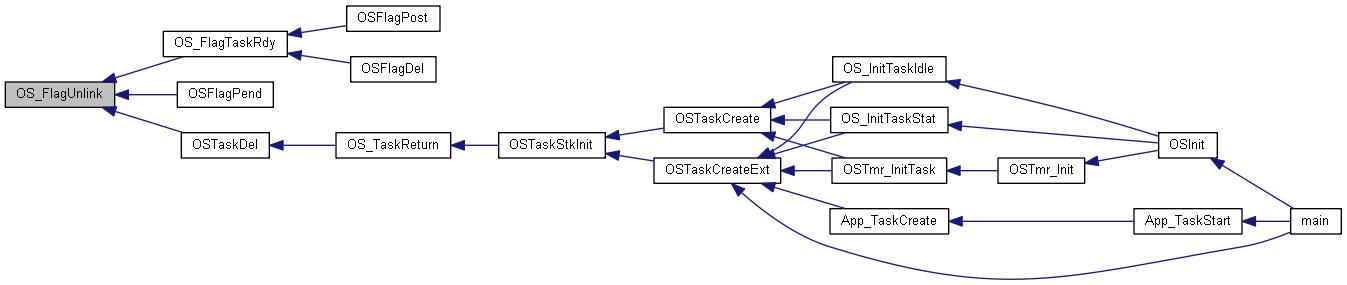

这是这个函数的调用关系图:
