os_q.c 文件参考

#include <ucos_ii.h>

os_q.c 的引用(Include)关系图:

浏览源代码.

函数
void *	OSQAccept (OS_EVENT *pevent, INT8U *perr)
OS_EVENT *	OSQCreate (void **start, INT16U size)
OS_EVENT *	OSQDel (OS_EVENT *pevent, INT8U opt, INT8U *perr)
INT8U	OSQFlush (OS_EVENT *pevent)
void *	OSQPend (OS_EVENT *pevent, INT32U timeout, INT8U *perr)
INT8U	OSQPendAbort (OS_EVENT *pevent, INT8U opt, INT8U *perr)
INT8U	OSQPost (OS_EVENT *pevent, void *pmsg)
INT8U	OSQPostFront (OS_EVENT *pevent, void *pmsg)
INT8U	OSQPostOpt (OS_EVENT *pevent, void *pmsg, INT8U opt)
INT8U	OSQQuery (OS_EVENT *pevent, OS_Q_DATA *p_q_data)
void	OS_QInit (void)

函数说明

void* OSQAccept	(	OS_EVENT *	pevent,
		INT8U *	perr
	)

在文件 os_q.c 第 61 行定义.

参考 OS_ENTER_CRITICAL, OS_ERR_EVENT_TYPE, OS_ERR_NONE, OS_ERR_PEVENT_NULL, OS_ERR_Q_EMPTY, OS_EVENT_TYPE_Q, OS_EXIT_CRITICAL, OS_EVENT::OSEventPtr, OS_EVENT::OSEventType, OS_Q::OSQEnd, OS_Q::OSQEntries, OS_Q::OSQOut , 以及 OS_Q::OSQStart.

{
    void      *pmsg;
    OS_Q      *pq;
#if OS_CRITICAL_METHOD == 3u                     /* Allocate storage for CPU status register           */
    OS_CPU_SR  cpu_sr = 0u;
#endif



#if OS_ARG_CHK_EN > 0u
    if (perr == (INT8U *)0) {                    /* Validate 'perr'                                    */
        return ((void *)0);
    }
    if (pevent == (OS_EVENT *)0) {               /* Validate 'pevent'                                  */
        *perr = OS_ERR_PEVENT_NULL;
        return ((void *)0);
    }
#endif
    if (pevent->OSEventType != OS_EVENT_TYPE_Q) {/* Validate event block type                          */
        *perr = OS_ERR_EVENT_TYPE;
        return ((void *)0);
    }
    OS_ENTER_CRITICAL();
    pq = (OS_Q *)pevent->OSEventPtr;             /* Point at queue control block                       */
    if (pq->OSQEntries > 0u) {                   /* See if any messages in the queue                   */
        pmsg = *pq->OSQOut++;                    /* Yes, extract oldest message from the queue         */
        pq->OSQEntries--;                        /* Update the number of entries in the queue          */
        if (pq->OSQOut == pq->OSQEnd) {          /* Wrap OUT pointer if we are at the end of the queue */
            pq->OSQOut = pq->OSQStart;
        }
        *perr = OS_ERR_NONE;
    } else {
        *perr = OS_ERR_Q_EMPTY;
        pmsg  = (void *)0;                       /* Queue is empty                                     */
    }
    OS_EXIT_CRITICAL();
    return (pmsg);                               /* Return message received (or NULL)                  */
}

OS_EVENT* OSQCreate	(	void **	start,
		INT16U	size
	)

在文件 os_q.c 第 122 行定义.

参考 OS_ENTER_CRITICAL, OS_EVENT_TYPE_Q, OS_EventWaitListInit(), OS_EXIT_CRITICAL, OS_EVENT::OSEventCnt, OSEventFreeList, OS_EVENT::OSEventName, OS_EVENT::OSEventPtr, OS_EVENT::OSEventType, OSIntNesting, OS_Q::OSQEnd, OS_Q::OSQEntries, OSQFreeList, OS_Q::OSQIn, OS_Q::OSQOut, OS_Q::OSQPtr, OS_Q::OSQSize , 以及 OS_Q::OSQStart.

{
    OS_EVENT  *pevent;
    OS_Q      *pq;
#if OS_CRITICAL_METHOD == 3u                     /* Allocate storage for CPU status register           */
    OS_CPU_SR  cpu_sr = 0u;
#endif



    if (OSIntNesting > 0u) {                     /* See if called from ISR ...                         */
        return ((OS_EVENT *)0);                  /* ... can't CREATE from an ISR                       */
    }
    OS_ENTER_CRITICAL();
    pevent = OSEventFreeList;                    /* Get next free event control block                  */
    if (OSEventFreeList != (OS_EVENT *)0) {      /* See if pool of free ECB pool was empty             */
        OSEventFreeList = (OS_EVENT *)OSEventFreeList->OSEventPtr;
    }
    OS_EXIT_CRITICAL();
    if (pevent != (OS_EVENT *)0) {               /* See if we have an event control block              */
        OS_ENTER_CRITICAL();
        pq = OSQFreeList;                        /* Get a free queue control block                     */
        if (pq != (OS_Q *)0) {                   /* Were we able to get a queue control block ?        */
            OSQFreeList            = OSQFreeList->OSQPtr; /* Yes, Adjust free list pointer to next free*/
            OS_EXIT_CRITICAL();
            pq->OSQStart           = start;               /*      Initialize the queue                 */
            pq->OSQEnd             = &start[size];
            pq->OSQIn              = start;
            pq->OSQOut             = start;
            pq->OSQSize            = size;
            pq->OSQEntries         = 0u;
            pevent->OSEventType    = OS_EVENT_TYPE_Q;
            pevent->OSEventCnt     = 0u;
            pevent->OSEventPtr     = pq;
#if OS_EVENT_NAME_EN > 0u
            pevent->OSEventName    = (INT8U *)"?";
#endif
            OS_EventWaitListInit(pevent);                 /*      Initalize the wait list              */
        } else {
            pevent->OSEventPtr = (void *)OSEventFreeList; /* No,  Return event control block on error  */
            OSEventFreeList    = pevent;
            OS_EXIT_CRITICAL();
            pevent = (OS_EVENT *)0;
        }
    }
    return (pevent);
}

函数调用图:

OS_EVENT* OSQDel	(	OS_EVENT *	pevent,
		INT8U	opt,
		INT8U *	perr
	)

在文件 os_q.c 第 213 行定义.

参考 OS_DEL_ALWAYS, OS_DEL_NO_PEND, OS_ENTER_CRITICAL, OS_ERR_DEL_ISR, OS_ERR_EVENT_TYPE, OS_ERR_INVALID_OPT, OS_ERR_NONE, OS_ERR_PEVENT_NULL, OS_ERR_TASK_WAITING, OS_EVENT_TYPE_Q, OS_EVENT_TYPE_UNUSED, OS_EventTaskRdy(), OS_EXIT_CRITICAL, OS_FALSE, OS_Sched(), OS_STAT_PEND_OK, OS_STAT_Q, OS_TRUE, OS_EVENT::OSEventCnt, OSEventFreeList, OS_EVENT::OSEventGrp, OS_EVENT::OSEventName, OS_EVENT::OSEventPtr, OS_EVENT::OSEventType, OSIntNesting, OSQFreeList , 以及 OS_Q::OSQPtr.

{
    BOOLEAN    tasks_waiting;
    OS_EVENT  *pevent_return;
    OS_Q      *pq;
#if OS_CRITICAL_METHOD == 3u                               /* Allocate storage for CPU status register */
    OS_CPU_SR  cpu_sr = 0u;
#endif



#if OS_ARG_CHK_EN > 0u
    if (perr == (INT8U *)0) {                              /* Validate 'perr'                          */
        return (pevent);
    }
    if (pevent == (OS_EVENT *)0) {                         /* Validate 'pevent'                        */
        *perr = OS_ERR_PEVENT_NULL;
        return (pevent);
    }
#endif
    if (pevent->OSEventType != OS_EVENT_TYPE_Q) {          /* Validate event block type                */
        *perr = OS_ERR_EVENT_TYPE;
        return (pevent);
    }
    if (OSIntNesting > 0u) {                               /* See if called from ISR ...               */
        *perr = OS_ERR_DEL_ISR;                            /* ... can't DELETE from an ISR             */
        return (pevent);
    }
    OS_ENTER_CRITICAL();
    if (pevent->OSEventGrp != 0u) {                        /* See if any tasks waiting on queue        */
        tasks_waiting = OS_TRUE;                           /* Yes                                      */
    } else {
        tasks_waiting = OS_FALSE;                          /* No                                       */
    }
    switch (opt) {
        case OS_DEL_NO_PEND:                               /* Delete queue only if no task waiting     */
             if (tasks_waiting == OS_FALSE) {
#if OS_EVENT_NAME_EN > 0u
                 pevent->OSEventName    = (INT8U *)"?";
#endif
                 pq                     = (OS_Q *)pevent->OSEventPtr;  /* Return OS_Q to free list     */
                 pq->OSQPtr             = OSQFreeList;
                 OSQFreeList            = pq;
                 pevent->OSEventType    = OS_EVENT_TYPE_UNUSED;
                 pevent->OSEventPtr     = OSEventFreeList; /* Return Event Control Block to free list  */
                 pevent->OSEventCnt     = 0u;
                 OSEventFreeList        = pevent;          /* Get next free event control block        */
                 OS_EXIT_CRITICAL();
                 *perr                  = OS_ERR_NONE;
                 pevent_return          = (OS_EVENT *)0;   /* Queue has been deleted                   */
             } else {
                 OS_EXIT_CRITICAL();
                 *perr                  = OS_ERR_TASK_WAITING;
                 pevent_return          = pevent;
             }
             break;

        case OS_DEL_ALWAYS:                                /* Always delete the queue                  */
             while (pevent->OSEventGrp != 0u) {            /* Ready ALL tasks waiting for queue        */
                 (void)OS_EventTaskRdy(pevent, (void *)0, OS_STAT_Q, OS_STAT_PEND_OK);
             }
#if OS_EVENT_NAME_EN > 0u
             pevent->OSEventName    = (INT8U *)"?";
#endif
             pq                     = (OS_Q *)pevent->OSEventPtr;   /* Return OS_Q to free list        */
             pq->OSQPtr             = OSQFreeList;
             OSQFreeList            = pq;
             pevent->OSEventType    = OS_EVENT_TYPE_UNUSED;
             pevent->OSEventPtr     = OSEventFreeList;     /* Return Event Control Block to free list  */
             pevent->OSEventCnt     = 0u;
             OSEventFreeList        = pevent;              /* Get next free event control block        */
             OS_EXIT_CRITICAL();
             if (tasks_waiting == OS_TRUE) {               /* Reschedule only if task(s) were waiting  */
                 OS_Sched();                               /* Find highest priority task ready to run  */
             }
             *perr                  = OS_ERR_NONE;
             pevent_return          = (OS_EVENT *)0;       /* Queue has been deleted                   */
             break;

        default:
             OS_EXIT_CRITICAL();
             *perr                  = OS_ERR_INVALID_OPT;
             pevent_return          = pevent;
             break;
    }
    return (pevent_return);
}

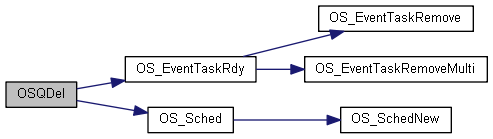

函数调用图:

INT8U OSQFlush

(

OS_EVENT *

pevent)

在文件 os_q.c 第 325 行定义.

参考 OS_ENTER_CRITICAL, OS_ERR_EVENT_TYPE, OS_ERR_NONE, OS_ERR_PEVENT_NULL, OS_EVENT_TYPE_Q, OS_EXIT_CRITICAL, OS_EVENT::OSEventPtr, OS_EVENT::OSEventType, OS_Q::OSQEntries, OS_Q::OSQIn, OS_Q::OSQOut , 以及 OS_Q::OSQStart.

{
    OS_Q      *pq;
#if OS_CRITICAL_METHOD == 3u                          /* Allocate storage for CPU status register      */
    OS_CPU_SR  cpu_sr = 0u;
#endif



#if OS_ARG_CHK_EN > 0u
    if (pevent == (OS_EVENT *)0) {                    /* Validate 'pevent'                             */
        return (OS_ERR_PEVENT_NULL);
    }
    if (pevent->OSEventType != OS_EVENT_TYPE_Q) {     /* Validate event block type                     */
        return (OS_ERR_EVENT_TYPE);
    }
#endif
    OS_ENTER_CRITICAL();
    pq             = (OS_Q *)pevent->OSEventPtr;      /* Point to queue storage structure              */
    pq->OSQIn      = pq->OSQStart;
    pq->OSQOut     = pq->OSQStart;
    pq->OSQEntries = 0u;
    OS_EXIT_CRITICAL();
    return (OS_ERR_NONE);
}

void* OSQPend	(	OS_EVENT *	pevent,
		INT32U	timeout,
		INT8U *	perr
	)

在文件 os_q.c 第 389 行定义.

参考 OS_ENTER_CRITICAL, OS_ERR_EVENT_TYPE, OS_ERR_NONE, OS_ERR_PEND_ABORT, OS_ERR_PEND_ISR, OS_ERR_PEND_LOCKED, OS_ERR_PEVENT_NULL, OS_ERR_TIMEOUT, OS_EVENT_TYPE_Q, OS_EventTaskRemove(), OS_EventTaskWait(), OS_EXIT_CRITICAL, OS_Sched(), OS_STAT_PEND_ABORT, OS_STAT_PEND_OK, OS_STAT_PEND_TO, OS_STAT_Q, OS_STAT_RDY, OS_EVENT::OSEventPtr, OS_EVENT::OSEventType, OSIntNesting, OSLockNesting, OS_Q::OSQEnd, OS_Q::OSQEntries, OS_Q::OSQOut, OS_Q::OSQStart, OSTCBCur, OS_TCB::OSTCBDly, OS_TCB::OSTCBEventMultiPtr, OS_TCB::OSTCBEventPtr, OS_TCB::OSTCBMsg, OS_TCB::OSTCBStat , 以及 OS_TCB::OSTCBStatPend.

{
    void      *pmsg;
    OS_Q      *pq;
#if OS_CRITICAL_METHOD == 3u                     /* Allocate storage for CPU status register           */
    OS_CPU_SR  cpu_sr = 0u;
#endif



#if OS_ARG_CHK_EN > 0u
    if (perr == (INT8U *)0) {                    /* Validate 'perr'                                    */
        return ((void *)0);
    }
    if (pevent == (OS_EVENT *)0) {               /* Validate 'pevent'                                  */
        *perr = OS_ERR_PEVENT_NULL;
        return ((void *)0);
    }
#endif
    if (pevent->OSEventType != OS_EVENT_TYPE_Q) {/* Validate event block type                          */
        *perr = OS_ERR_EVENT_TYPE;
        return ((void *)0);
    }
    if (OSIntNesting > 0u) {                     /* See if called from ISR ...                         */
        *perr = OS_ERR_PEND_ISR;                 /* ... can't PEND from an ISR                         */
        return ((void *)0);
    }
    if (OSLockNesting > 0u) {                    /* See if called with scheduler locked ...            */
        *perr = OS_ERR_PEND_LOCKED;              /* ... can't PEND when locked                         */
        return ((void *)0);
    }
    OS_ENTER_CRITICAL();
    pq = (OS_Q *)pevent->OSEventPtr;             /* Point at queue control block                       */
    if (pq->OSQEntries > 0u) {                   /* See if any messages in the queue                   */
        pmsg = *pq->OSQOut++;                    /* Yes, extract oldest message from the queue         */
        pq->OSQEntries--;                        /* Update the number of entries in the queue          */
        if (pq->OSQOut == pq->OSQEnd) {          /* Wrap OUT pointer if we are at the end of the queue */
            pq->OSQOut = pq->OSQStart;
        }
        OS_EXIT_CRITICAL();
        *perr = OS_ERR_NONE;
        return (pmsg);                           /* Return message received                            */
    }
    OSTCBCur->OSTCBStat     |= OS_STAT_Q;        /* Task will have to pend for a message to be posted  */
    OSTCBCur->OSTCBStatPend  = OS_STAT_PEND_OK;
    OSTCBCur->OSTCBDly       = timeout;          /* Load timeout into TCB                              */
    OS_EventTaskWait(pevent);                    /* Suspend task until event or timeout occurs         */
    OS_EXIT_CRITICAL();
    OS_Sched();                                  /* Find next highest priority task ready to run       */
    OS_ENTER_CRITICAL();
    switch (OSTCBCur->OSTCBStatPend) {                /* See if we timed-out or aborted                */
        case OS_STAT_PEND_OK:                         /* Extract message from TCB (Put there by QPost) */
             pmsg =  OSTCBCur->OSTCBMsg;
            *perr =  OS_ERR_NONE;
             break;

        case OS_STAT_PEND_ABORT:
             pmsg = (void *)0;
            *perr =  OS_ERR_PEND_ABORT;               /* Indicate that we aborted                      */
             break;

        case OS_STAT_PEND_TO:
        default:
             OS_EventTaskRemove(OSTCBCur, pevent);
             pmsg = (void *)0;
            *perr =  OS_ERR_TIMEOUT;                  /* Indicate that we didn't get event within TO   */
             break;
    }
    OSTCBCur->OSTCBStat          =  OS_STAT_RDY;      /* Set   task  status to ready                   */
    OSTCBCur->OSTCBStatPend      =  OS_STAT_PEND_OK;  /* Clear pend  status                            */
    OSTCBCur->OSTCBEventPtr      = (OS_EVENT  *)0;    /* Clear event pointers                          */
#if (OS_EVENT_MULTI_EN > 0u)
    OSTCBCur->OSTCBEventMultiPtr = (OS_EVENT **)0;
#endif
    OSTCBCur->OSTCBMsg           = (void      *)0;    /* Clear  received message                       */
    OS_EXIT_CRITICAL();
    return (pmsg);                                    /* Return received message                       */
}

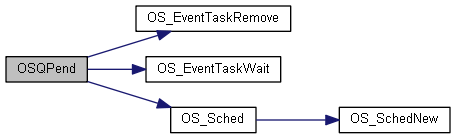

函数调用图:

INT8U OSQPendAbort	(	OS_EVENT *	pevent,
		INT8U	opt,
		INT8U *	perr
	)

在文件 os_q.c 第 503 行定义.

参考 OS_ENTER_CRITICAL, OS_ERR_EVENT_TYPE, OS_ERR_NONE, OS_ERR_PEND_ABORT, OS_ERR_PEVENT_NULL, OS_EVENT_TYPE_Q, OS_EventTaskRdy(), OS_EXIT_CRITICAL, OS_PEND_OPT_BROADCAST, OS_PEND_OPT_NONE, OS_Sched(), OS_STAT_PEND_ABORT, OS_STAT_Q, OS_EVENT::OSEventGrp , 以及 OS_EVENT::OSEventType.

{
    INT8U      nbr_tasks;
#if OS_CRITICAL_METHOD == 3u                               /* Allocate storage for CPU status register */
    OS_CPU_SR  cpu_sr = 0u;
#endif



#if OS_ARG_CHK_EN > 0u
    if (perr == (INT8U *)0) {                              /* Validate 'perr'                          */
        return (0u);
    }
    if (pevent == (OS_EVENT *)0) {                         /* Validate 'pevent'                        */
        *perr = OS_ERR_PEVENT_NULL;
        return (0u);
    }
#endif
    if (pevent->OSEventType != OS_EVENT_TYPE_Q) {          /* Validate event block type                */
        *perr = OS_ERR_EVENT_TYPE;
        return (0u);
    }
    OS_ENTER_CRITICAL();
    if (pevent->OSEventGrp != 0u) {                        /* See if any task waiting on queue?        */
        nbr_tasks = 0u;
        switch (opt) {
            case OS_PEND_OPT_BROADCAST:                    /* Do we need to abort ALL waiting tasks?   */
                 while (pevent->OSEventGrp != 0u) {        /* Yes, ready ALL tasks waiting on queue    */
                     (void)OS_EventTaskRdy(pevent, (void *)0, OS_STAT_Q, OS_STAT_PEND_ABORT);
                     nbr_tasks++;
                 }
                 break;

            case OS_PEND_OPT_NONE:
            default:                                       /* No,  ready HPT       waiting on queue    */
                 (void)OS_EventTaskRdy(pevent, (void *)0, OS_STAT_Q, OS_STAT_PEND_ABORT);
                 nbr_tasks++;
                 break;
        }
        OS_EXIT_CRITICAL();
        OS_Sched();                                        /* Find HPT ready to run                    */
        *perr = OS_ERR_PEND_ABORT;
        return (nbr_tasks);
    }
    OS_EXIT_CRITICAL();
    *perr = OS_ERR_NONE;
    return (0u);                                           /* No tasks waiting on queue                */
}

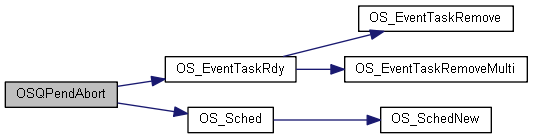

函数调用图:

INT8U OSQPost	(	OS_EVENT *	pevent,
		void *	pmsg
	)

在文件 os_q.c 第 576 行定义.

参考 OS_ENTER_CRITICAL, OS_ERR_EVENT_TYPE, OS_ERR_NONE, OS_ERR_PEVENT_NULL, OS_ERR_Q_FULL, OS_EVENT_TYPE_Q, OS_EventTaskRdy(), OS_EXIT_CRITICAL, OS_Sched(), OS_STAT_PEND_OK, OS_STAT_Q, OS_EVENT::OSEventGrp, OS_EVENT::OSEventPtr, OS_EVENT::OSEventType, OS_Q::OSQEnd, OS_Q::OSQEntries, OS_Q::OSQIn, OS_Q::OSQSize , 以及 OS_Q::OSQStart.

{
    OS_Q      *pq;
#if OS_CRITICAL_METHOD == 3u                           /* Allocate storage for CPU status register     */
    OS_CPU_SR  cpu_sr = 0u;
#endif



#if OS_ARG_CHK_EN > 0u
    if (pevent == (OS_EVENT *)0) {                     /* Validate 'pevent'                            */
        return (OS_ERR_PEVENT_NULL);
    }
#endif
    if (pevent->OSEventType != OS_EVENT_TYPE_Q) {      /* Validate event block type                    */
        return (OS_ERR_EVENT_TYPE);
    }
    OS_ENTER_CRITICAL();
    if (pevent->OSEventGrp != 0u) {                    /* See if any task pending on queue             */
                                                       /* Ready highest priority task waiting on event */
        (void)OS_EventTaskRdy(pevent, pmsg, OS_STAT_Q, OS_STAT_PEND_OK);
        OS_EXIT_CRITICAL();
        OS_Sched();                                    /* Find highest priority task ready to run      */
        return (OS_ERR_NONE);
    }
    pq = (OS_Q *)pevent->OSEventPtr;                   /* Point to queue control block                 */
    if (pq->OSQEntries >= pq->OSQSize) {               /* Make sure queue is not full                  */
        OS_EXIT_CRITICAL();
        return (OS_ERR_Q_FULL);
    }
    *pq->OSQIn++ = pmsg;                               /* Insert message into queue                    */
    pq->OSQEntries++;                                  /* Update the nbr of entries in the queue       */
    if (pq->OSQIn == pq->OSQEnd) {                     /* Wrap IN ptr if we are at end of queue        */
        pq->OSQIn = pq->OSQStart;
    }
    OS_EXIT_CRITICAL();
    return (OS_ERR_NONE);
}

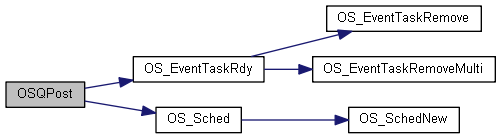

函数调用图:

INT8U OSQPostFront	(	OS_EVENT *	pevent,
		void *	pmsg
	)

在文件 os_q.c 第 639 行定义.

参考 OS_ENTER_CRITICAL, OS_ERR_EVENT_TYPE, OS_ERR_NONE, OS_ERR_PEVENT_NULL, OS_ERR_Q_FULL, OS_EVENT_TYPE_Q, OS_EventTaskRdy(), OS_EXIT_CRITICAL, OS_Sched(), OS_STAT_PEND_OK, OS_STAT_Q, OS_EVENT::OSEventGrp, OS_EVENT::OSEventPtr, OS_EVENT::OSEventType, OS_Q::OSQEnd, OS_Q::OSQEntries, OS_Q::OSQOut, OS_Q::OSQSize , 以及 OS_Q::OSQStart.

{
    OS_Q      *pq;
#if OS_CRITICAL_METHOD == 3u                          /* Allocate storage for CPU status register      */
    OS_CPU_SR  cpu_sr = 0u;
#endif



#if OS_ARG_CHK_EN > 0u
    if (pevent == (OS_EVENT *)0) {                    /* Validate 'pevent'                             */
        return (OS_ERR_PEVENT_NULL);
    }
#endif
    if (pevent->OSEventType != OS_EVENT_TYPE_Q) {     /* Validate event block type                     */
        return (OS_ERR_EVENT_TYPE);
    }
    OS_ENTER_CRITICAL();
    if (pevent->OSEventGrp != 0u) {                   /* See if any task pending on queue              */
                                                      /* Ready highest priority task waiting on event  */
        (void)OS_EventTaskRdy(pevent, pmsg, OS_STAT_Q, OS_STAT_PEND_OK);
        OS_EXIT_CRITICAL();
        OS_Sched();                                   /* Find highest priority task ready to run       */
        return (OS_ERR_NONE);
    }
    pq = (OS_Q *)pevent->OSEventPtr;                  /* Point to queue control block                  */
    if (pq->OSQEntries >= pq->OSQSize) {              /* Make sure queue is not full                   */
        OS_EXIT_CRITICAL();
        return (OS_ERR_Q_FULL);
    }
    if (pq->OSQOut == pq->OSQStart) {                 /* Wrap OUT ptr if we are at the 1st queue entry */
        pq->OSQOut = pq->OSQEnd;
    }
    pq->OSQOut--;
    *pq->OSQOut = pmsg;                               /* Insert message into queue                     */
    pq->OSQEntries++;                                 /* Update the nbr of entries in the queue        */
    OS_EXIT_CRITICAL();
    return (OS_ERR_NONE);
}

函数调用图:

INT8U OSQPostOpt	(	OS_EVENT *	pevent,
		void *	pmsg,
		INT8U	opt
	)

在文件 os_q.c 第 711 行定义.

参考 OS_ENTER_CRITICAL, OS_ERR_EVENT_TYPE, OS_ERR_NONE, OS_ERR_PEVENT_NULL, OS_ERR_Q_FULL, OS_EVENT_TYPE_Q, OS_EventTaskRdy(), OS_EXIT_CRITICAL, OS_POST_OPT_BROADCAST, OS_POST_OPT_FRONT, OS_POST_OPT_NO_SCHED, OS_Sched(), OS_STAT_PEND_OK, OS_STAT_Q, OS_EVENT::OSEventGrp, OS_EVENT::OSEventPtr, OS_EVENT::OSEventType, OS_Q::OSQEnd, OS_Q::OSQEntries, OS_Q::OSQIn, OS_Q::OSQOut, OS_Q::OSQSize , 以及 OS_Q::OSQStart.

{
    OS_Q      *pq;
#if OS_CRITICAL_METHOD == 3u                          /* Allocate storage for CPU status register      */
    OS_CPU_SR  cpu_sr = 0u;
#endif



#if OS_ARG_CHK_EN > 0u
    if (pevent == (OS_EVENT *)0) {                    /* Validate 'pevent'                             */
        return (OS_ERR_PEVENT_NULL);
    }
#endif
    if (pevent->OSEventType != OS_EVENT_TYPE_Q) {     /* Validate event block type                     */
        return (OS_ERR_EVENT_TYPE);
    }
    OS_ENTER_CRITICAL();
    if (pevent->OSEventGrp != 0x00u) {                /* See if any task pending on queue              */
        if ((opt & OS_POST_OPT_BROADCAST) != 0x00u) { /* Do we need to post msg to ALL waiting tasks ? */
            while (pevent->OSEventGrp != 0u) {        /* Yes, Post to ALL tasks waiting on queue       */
                (void)OS_EventTaskRdy(pevent, pmsg, OS_STAT_Q, OS_STAT_PEND_OK);
            }
        } else {                                      /* No,  Post to HPT waiting on queue             */
            (void)OS_EventTaskRdy(pevent, pmsg, OS_STAT_Q, OS_STAT_PEND_OK);
        }
        OS_EXIT_CRITICAL();
        if ((opt & OS_POST_OPT_NO_SCHED) == 0u) {     /* See if scheduler needs to be invoked          */
            OS_Sched();                               /* Find highest priority task ready to run       */
        }
        return (OS_ERR_NONE);
    }
    pq = (OS_Q *)pevent->OSEventPtr;                  /* Point to queue control block                  */
    if (pq->OSQEntries >= pq->OSQSize) {              /* Make sure queue is not full                   */
        OS_EXIT_CRITICAL();
        return (OS_ERR_Q_FULL);
    }
    if ((opt & OS_POST_OPT_FRONT) != 0x00u) {         /* Do we post to the FRONT of the queue?         */
        if (pq->OSQOut == pq->OSQStart) {             /* Yes, Post as LIFO, Wrap OUT pointer if we ... */
            pq->OSQOut = pq->OSQEnd;                  /*      ... are at the 1st queue entry           */
        }
        pq->OSQOut--;
        *pq->OSQOut = pmsg;                           /*      Insert message into queue                */
    } else {                                          /* No,  Post as FIFO                             */
        *pq->OSQIn++ = pmsg;                          /*      Insert message into queue                */
        if (pq->OSQIn == pq->OSQEnd) {                /*      Wrap IN ptr if we are at end of queue    */
            pq->OSQIn = pq->OSQStart;
        }
    }
    pq->OSQEntries++;                                 /* Update the nbr of entries in the queue        */
    OS_EXIT_CRITICAL();
    return (OS_ERR_NONE);
}

函数调用图:

INT8U OSQQuery	(	OS_EVENT *	pevent,
		OS_Q_DATA *	p_q_data
	)

在文件 os_q.c 第 787 行定义.

参考 OS_ENTER_CRITICAL, OS_ERR_EVENT_TYPE, OS_ERR_NONE, OS_ERR_PDATA_NULL, OS_ERR_PEVENT_NULL, OS_EVENT_TBL_SIZE, OS_EVENT_TYPE_Q, OS_EXIT_CRITICAL, OS_EVENT::OSEventGrp, OS_Q_DATA::OSEventGrp, OS_EVENT::OSEventPtr, OS_EVENT::OSEventTbl, OS_Q_DATA::OSEventTbl, OS_EVENT::OSEventType, OS_Q_DATA::OSMsg, OS_Q_DATA::OSNMsgs, OS_Q::OSQEntries, OS_Q::OSQOut, OS_Q::OSQSize , 以及 OS_Q_DATA::OSQSize.

{
    OS_Q      *pq;
    INT8U      i;
#if OS_LOWEST_PRIO <= 63u
    INT8U     *psrc;
    INT8U     *pdest;
#else
    INT16U    *psrc;
    INT16U    *pdest;
#endif
#if OS_CRITICAL_METHOD == 3u                           /* Allocate storage for CPU status register     */
    OS_CPU_SR  cpu_sr = 0u;
#endif



#if OS_ARG_CHK_EN > 0u
    if (pevent == (OS_EVENT *)0) {                     /* Validate 'pevent'                            */
        return (OS_ERR_PEVENT_NULL);
    }
    if (p_q_data == (OS_Q_DATA *)0) {                  /* Validate 'p_q_data'                          */
        return (OS_ERR_PDATA_NULL);
    }
#endif
    if (pevent->OSEventType != OS_EVENT_TYPE_Q) {      /* Validate event block type                    */
        return (OS_ERR_EVENT_TYPE);
    }
    OS_ENTER_CRITICAL();
    p_q_data->OSEventGrp = pevent->OSEventGrp;         /* Copy message queue wait list                 */
    psrc                 = &pevent->OSEventTbl[0];
    pdest                = &p_q_data->OSEventTbl[0];
    for (i = 0u; i < OS_EVENT_TBL_SIZE; i++) {
        *pdest++ = *psrc++;
    }
    pq = (OS_Q *)pevent->OSEventPtr;
    if (pq->OSQEntries > 0u) {
        p_q_data->OSMsg = *pq->OSQOut;                 /* Get next message to return if available      */
    } else {
        p_q_data->OSMsg = (void *)0;
    }
    p_q_data->OSNMsgs = pq->OSQEntries;
    p_q_data->OSQSize = pq->OSQSize;
    OS_EXIT_CRITICAL();
    return (OS_ERR_NONE);
}

void OS_QInit

(

void

)

在文件 os_q.c 第 852 行定义.

参考 OS_MAX_QS, OS_MemClr(), OSQFreeList, OS_Q::OSQPtr , 以及 OSQTbl.

参考自 OSInit().

{
#if OS_MAX_QS == 1u
    OSQFreeList         = &OSQTbl[0];                /* Only ONE queue!                                */
    OSQFreeList->OSQPtr = (OS_Q *)0;
#endif

#if OS_MAX_QS >= 2u
    INT16U  i;
    OS_Q   *pq1;
    OS_Q   *pq2;



    OS_MemClr((INT8U *)&OSQTbl[0], sizeof(OSQTbl));  /* Clear the queue table                          */
    pq1 = &OSQTbl[0];
    pq2 = &OSQTbl[1];
    for (i = 0u; i < (OS_MAX_QS - 1u); i++) {        /* Init. list of free QUEUE control blocks        */
        pq1->OSQPtr = pq2;
        pq1++;
        pq2++;
    }
    pq1->OSQPtr = (OS_Q *)0;
    OSQFreeList = &OSQTbl[0];
#endif
}

函数调用图:

这是这个函数的调用关系图:
